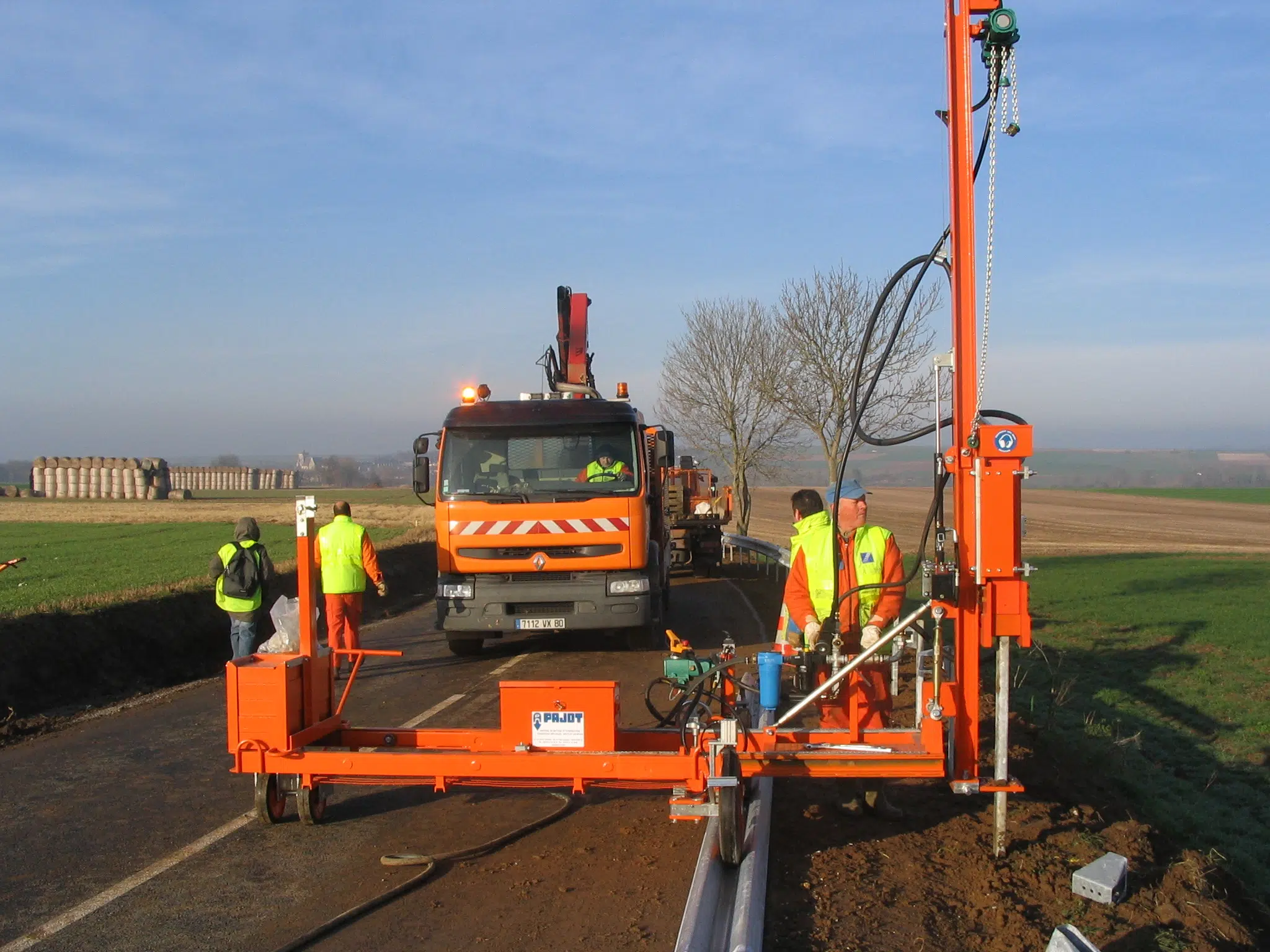

Pajot pneumatic guardrail post pile driver

The PAJOT guardrail post pile drivers are ideal for guard rail post installations and offer a robust and durable solution with low operating costs. The machines are compact (folding mast) and lightweight making them easy to transport to the site. They can be fitted with a PAJOT 115, 160 or 300 kg impact hammer and only require a 2200 to 3500 liter compressor pulled by the pile driver to power them.

Robust and durable solution delivering low operating costs. This machine is compact (folding mast) and lightweight making it easy to transport to the site.

Advantages of the PAJOT SPR108 pneumatic guardrail post pile driver

• Verticality adjustment in all 3 dimensions
• Articulated mast with gas jack system for effortless single person raising.
• Steerable wheels: 2 positions (movement and operation) mounted on shaft bearings, specially designed tires to roll effortlessly in slideways, including type A
• Pneumatic equipment comprising: air exhaust pipe, line greaser with receiver, 1 outlet for connecting tools
• Compressed air lifting tackle with 500 kg lifting force with progressive pneumatic remote control and emergency stop within reach of the driver
• 1 translational movement motor with progressive pneumatic remote control and motor lock in both directions
• 1 spirit level
• 1 tool chest
• 1 handbrake on the free wheel


SPR 108 PAJOT pile driver characteristics

Total weight excluding hammer, including 8 counterweights. ………….850 kg

Removable counterweights………….. 57 kg x 8. 456 kg plates

Maximum working height under hammer ………..300. 2350 mm

Chassis offset…………………………………………………… 1150 mm

Mast inclination forward, back and side-to-side

Designed for ………………….115, 160, 270 and 300 kg impact hammers
