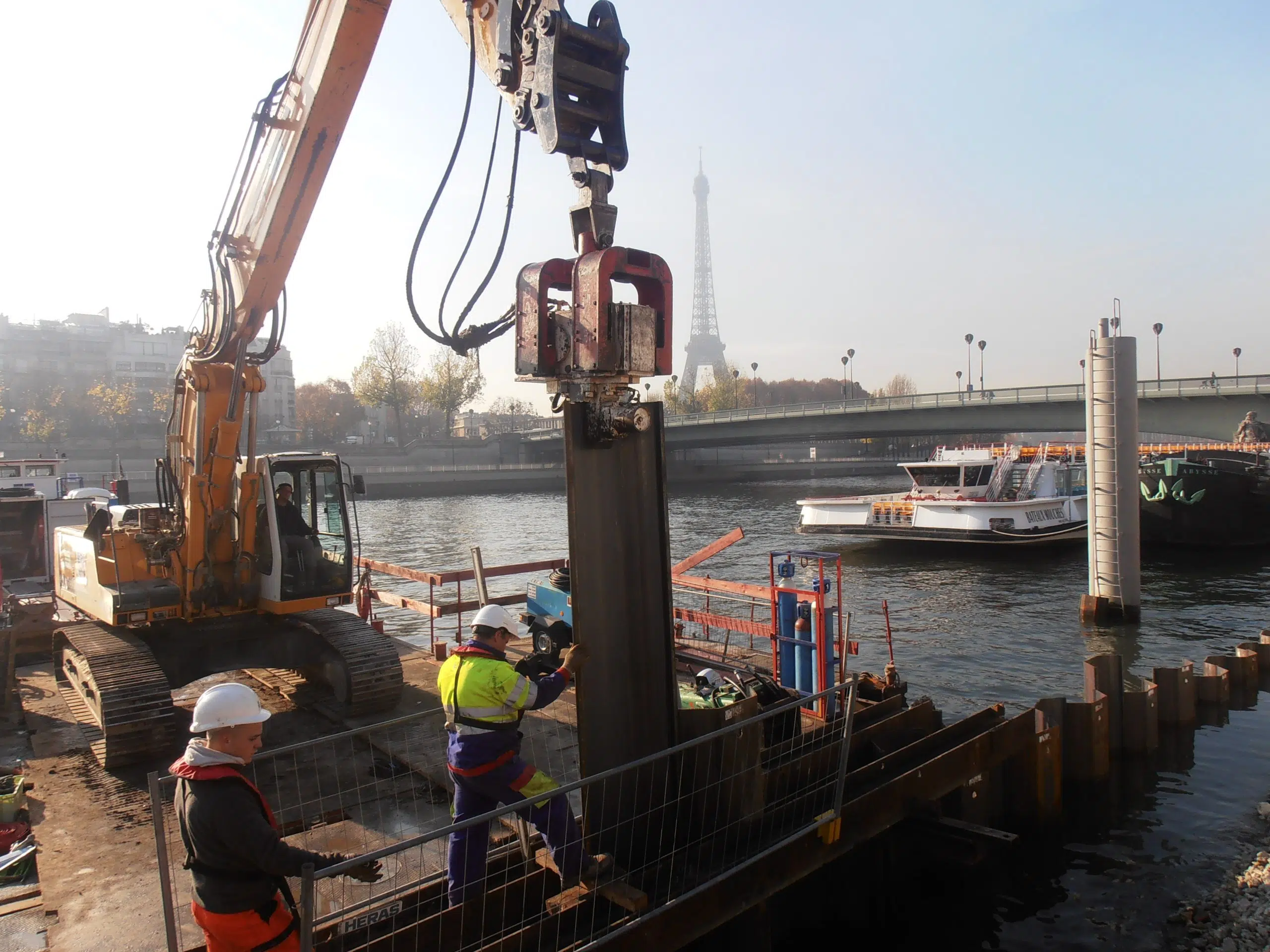

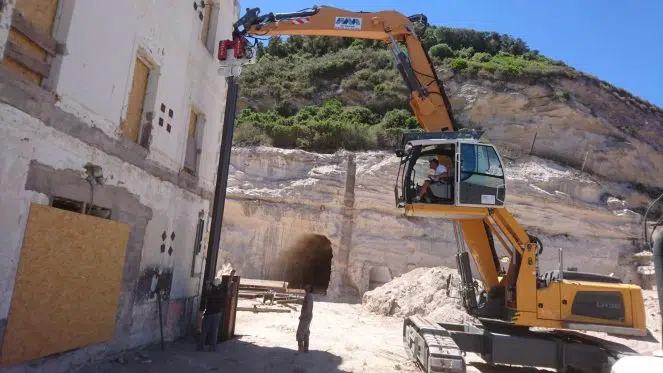

Vibration frequency from 2400 to 3000 RPM. Not only does the EMV not damage the excavator, the high frequency it uses enables it to operate in urban environments and vibration-sensitive areas.
| Excavator-mounted vibrators | Units | EMV 70 | EMV 220 | EMV 300A | EMV 450 | EMV 550 |
|---|---|---|---|---|---|---|
| Eccentric moment | kg | 0.7 | 3.24 | 4.6 | 6.9 | 8.3 |
| Frequency | RPM | 3000 | 3000 | 2400 | 2460 | 2500 |
| Centrifugal force | kN | 70 | 220 | 300 | 450 | 550 |
| Amplitude | mm | 3,4 | 12 | 14,7 | 12 | 13 |
| Minimum flow* | l/min | 30 | 90 | 130 | 195 | 256 |
| Maximum flow | l/min | 120 | 250 | 250 | 350 | 400 |
| Minimum pressure | bar | 240 | 280 | 240 | 270 | 280 |
| Maximum pressure | bar | 350 | 350 | 350 | 350 | 350 |
| Minimum hydraulic motor power | kW | 12 | 42 | 52 | 88 | 120 |
| Dynamic weight | kg | 410 | 370 | 625 | 1008 | 1150 |
| Total weight | kg | 520 | 525 | 860 | 1275 | 1500 |
| Maximum profile weight | kg | 800 | 800 | 800 | 1000 | 1400 |
| Maximum extraction/pressing capacity | kg | 2800 | 7500 | 15000 | 15000 | 15000 |
| Type of excavator | Tonnes | 5 to 15 | 7 to 22 | 12 to 35 | 27 to 45 | 30 to 55 |
| Dimensions in mm | A | 360 | 445 | 615 | 615 | 750 |
| B | 25 | 40 | 25 | 32 | 40 | |
| C | 250 | 150 | 250 | 230 | 230 | |
| D | 455 | 431 | 582 | 640 | 850 | |
| E | 340 | 431 | 429 | 510 | 560 | |
| F | 672 | 850 | 926 | 945 | 985 | |
| G | 942 | 1120 | 1200 | 1250 | 1400 | |
| H | 150 | 130 | 150 | 180 | 195 | |
| Download PDF file | EMV 70 vibrator | EMV 220 vibrator | EMV300_FR vibrator | EMV 450 vibrator | EMV 550 vibrator |
Vibro will achieve full RPM with minimum flow indicated. Anything above the minimum is wasted and is returned to the excavator tank. Our recommendation is to set the excavator at a little above requirements around +30% so the minimum needed should always be available.
