High frequency vibrators with variable moment

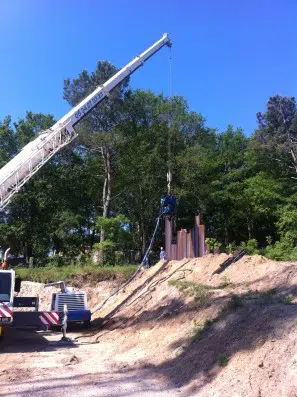

Vibration frequency 2000 to 2300 RPM. During start up and shut down, the eccentrics are phase uncoupled to prevent any vibration when the operating frequency is below 33 Hz, making this system ideal for working in close proximity to buildings or on sites that are sensitive to vibration, and enables the machine to be used with a telescopic crane. This technology also allows the amplitude and vibration speed to be adjusted while in operation.

High frequency variable moment vibrators	2312VM	16VM	20VM	24VM	28VM	2332VM	40VM	2350VM	2070VM
Eccentric moment	0-12 kgm	0-16 kgm	0-19 kgm	0-24 kgm	0-28 kgm	0-32 kgm	0-40 kgm	0-50 kgm	0-70 kgm
Max frequency	0-2300 RPM	0-2300 RPM	0-2300 RPM	0-2300 RPM	0-2300 RPM	0-2300 RPM	0-2000 RPM	0-2300 RPM	0-2000 RPM
Max centrifugal force	0-700 kn	0-928 kn	0-1100 kn	0-1400 kn	0-1600 kn	0-1856 kn	0-1755 kn	0-2900 kn	0-3070 kn
Max hydraulic power	152kW/207HP	250kW/341HP	291kW/396HP	286kW/389HP	344kW/468HP	510kW/683HP	467kW/635HP	805kW/1095HP	913kW/1269HP
Max extraction capacity	250 kn	240 kn	240 kn	400 kn	400 kn	500 kn	400 kn	800 kn	800 kn
Total weight*	2390 kg	3560 kg	3650 kg	5960 kg	5900 kg	6750 kg	6760 kg	10000 kg	10200 kg
Dynamic weight*	1450 kg	2460 kg	2555 kg	3500 kg	3900 kg	4300 kg	4300 kg	6600 kg	6800 kg
Max amplitude*	0-17 mm	0-13 mm	0-15 mm	0-14 mm	0-14 mm	0-15mm	0-19 mm	0-15 mm	0-21 mm
L x D x H mm *	1559 x674 x1589	1849 x637 x2008	1849 x637 x2008	1967 x740 x2445	2333 x785 x2427	2384 x825 x2352	2622 x709 x2690	2883 x985 x2835	2883 x985 x2835
Power plant type	300	480	500	500	600	800	800	1400	1400/1600
Sheet pile clamp	85T	110T	150T	200T	200T	350T	350T	350T	350T
Tube cap	2x55T	2x80T	2x80T	2x80T	2x100T	2x125T	2x125T	2x175T	2x175T
Download PDF file	PVE2312VM_PAJOT	PVE16VM_PAJOT	PVE20VM_PAJOT	PVE24VM_PAJOT	PVE28VM_PAJOT	PVE2332VM_PAJOT	PVE40VM_PAJOT	PVE2350VM_PAJOT	PVE2O70VM_PAJOT

*without clamp
